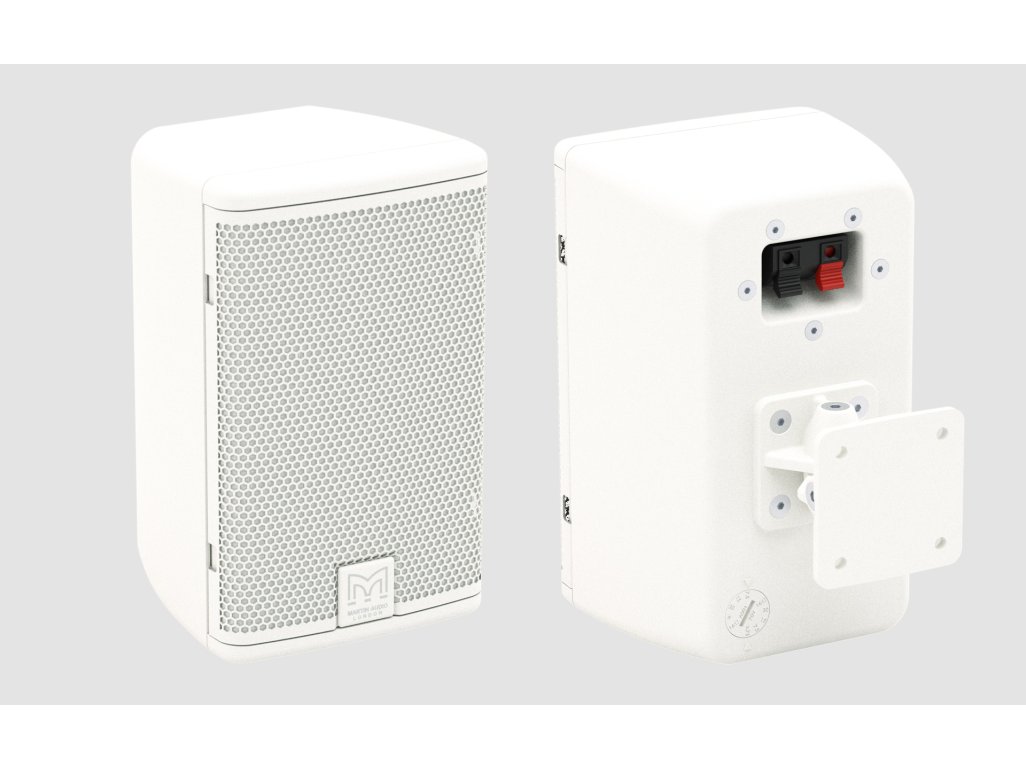

A40TW

4" kompaktný pasívny 2-pásmový inštalačný reproduktor White 70/100V

ADORN A40 je reprosystém pre akékoľvek inštalácie v krytom prostredí s elegantným dizajnom ktorý spľňa najvyššie požiadavky na kvalitu reprodukcie pri nenáročnej cene v 70/100V zapojení.

Features

• Contemporary, unobtrusive design
• High output capability
• High fidelity sound
• Low and high-frequency overload protection
• Vertical or horizontal orientation
• Wide 110° x 80° coverage
• Wall bracket included
• 70/100V speaker Trafo input

Applications

• Retail outlets
• Cafes, bars and restaurant chains
• Hotels and convention centres
• Educational facilities
• Corporate offices

A40 alebo 55 je absolútne vhodné riešenie širokého záberu v obchodoch,baroch a reštauráciách, kanceláriách, čakárňach a v halách, priestoroch publick zhromažďovania, školách, kostoloch, hoteloch, prednáškových miestnostiach....atď

Sú komponentom na ktoré nadvazujú vyššie série pre prípad špecifických nárokov na koaxiálny systém alebo na vačší výkon CDD alebo BlacklineX.

Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.

With a nominal impedance of 16 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2004, thereby maximising efficiency and minimising cost. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.

The VIA2004 amplifier in combination with a Martin Audio DX0.5 controller will be perfect partners for small scale efficient installations, or with the DX4.0 controller for larger more complex installations, which could then also be managed by Martin Audio’s VU-NET control software platform.

The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.

https://static.martin-audio.com/downloads/brochures/ADORN-brochure.pdf
