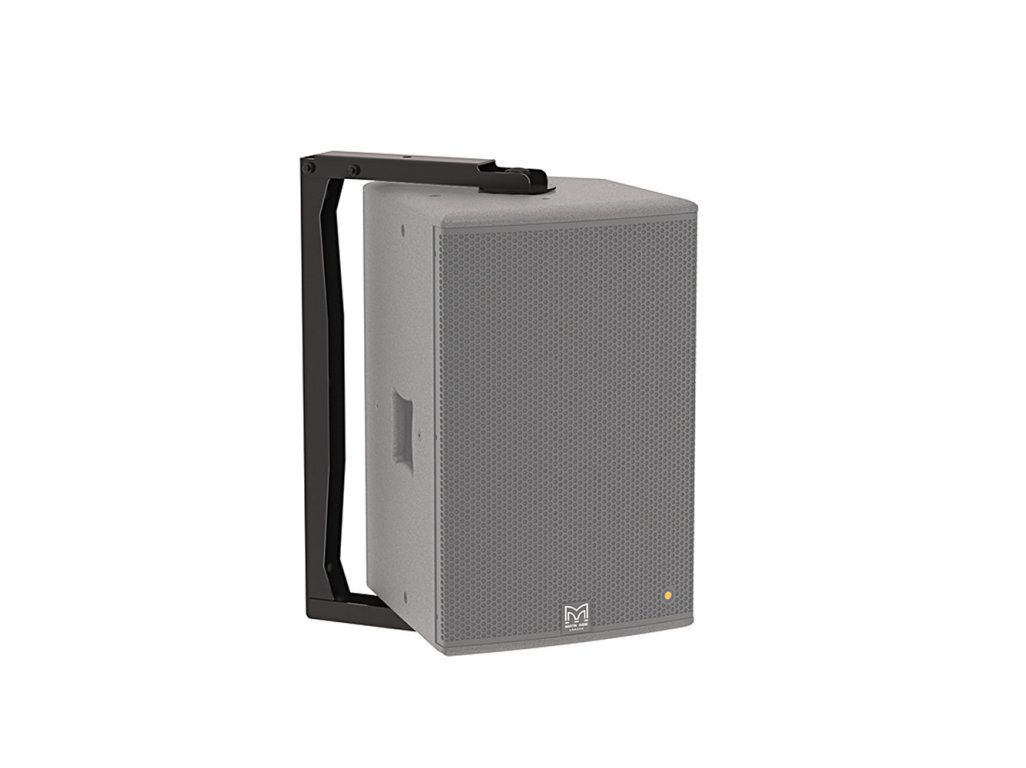

CDD-LIVE15W

The CDD-LIVE 15 is a self-powered two-way system designed for professional live applications and installations that demand the ultimate in sonic performance from a single enclosure. Its powerful Coaxial Differential Dispersion driver comprises a 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm. With a maximum SPL of 132dB peak at 1 metre, it is the ideal solution for medium-scale touring, theatre and portable live sound applications, as well as premium installations and stage monitor use.

Features

• High-power, self-powered two-way system
• Coaxial Differential Dispersion™ technology
• Onboard Class D amplification and DSP
• Dante™ Digital Audio networking
• Global mains operation with Power Factor Correction
• User-rotatable CDD™ driver
• Vertical and horizontal mounting options
• Tour-grade, multi-angle plywood enclosure
• IP24 rating option with rain cowl
• Comprehensive mounting accessories

Applications

• Live sound reinforcement
• Theatre sound
• Corporate AV events
• Fixed installations in concert halls, ballrooms and HoW
• Stage monitor and sidefill
• Bars and clubs

With wide coverage close-up, the Coaxial Differential Dispersion technology employed in the CDD-LIVE 15 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns, and its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs.

A self-powered system, the CDD-LIVE 15 incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W LF + 500W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.

DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.

For simple set-ups, ‘plug-and-play’ presets — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. As an alternative to its analogue inputs, the CDD- LIVE 15 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.

The CDD-LIVE 15 is incredibly versatile. Its multi-angle enclosure can be used in either horizontal or vertical orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The tour-grade enclosure is constructed from multi-laminate plywood and finished in a hard-wearing polyurea coating. Integral fittings include a top-hat for pole mounting and multiple M8 inserts for attachment to a yoke or universal bracket with a wide range of up and down tilt angles.
