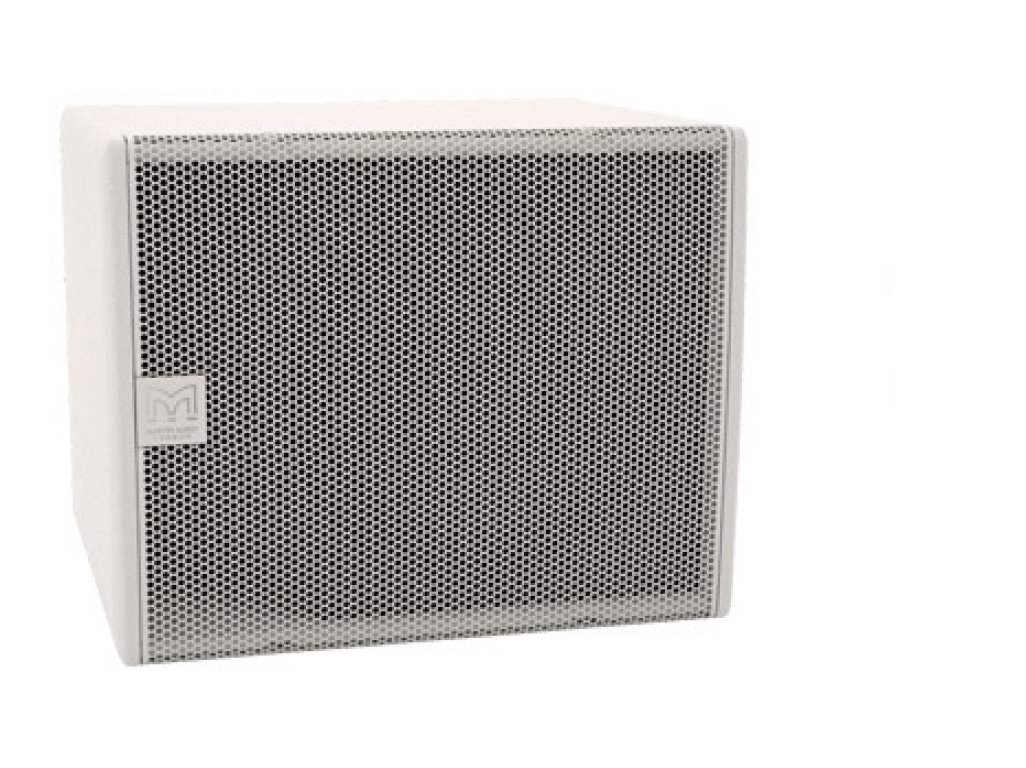

SX112B/W

12"CSX SUBWOOFER BLACK or WHITE

The CSX112 is an ultra-compact direct radiating sub-bass system designed to extend the bandwidth and increase the headroom of CDD full-range models from the CDD5 to the CDD10. It features a very efficient 12" (300mm) long-throw bass driver with a high power 3" (75mm) voice coil and generously-sized reflex ports for low noise, high power operation.

With a response of 48Hz-150Hz ± 3dB, the ultra-compact size of the CSX112 makes it an ideal partner for CDD Series systems where space is at a premium or where the subwoofers need to be hidden. The enclosure is constructed from high-density MDF and has an impact-resistant finish, while the driver is protected by a rigid perforated steel grille, which is pre-curved to withstand physical damage.

Finished in black (RAL9005) or white (RAL9016) textured paint as standard, the CSX112 can be supplied in any RAL colour to order, and it can be supplied fitted with optional flying points.

When used with CDD full-range systems, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.

Features

• Compact, direct-radiator subwoofer
• 12” (300mm) driver with 3” (75mm) voice coil
• High efficiency 102dB/1W/1m half-space
• Water resistant cone
• Ultra-compact, architecturally-friendly enclosure
• Large ports for reduced air noise
• Perforated steel grille
• Black or white standard colour options
• Optional flying points

Applications

• Live music clubs and bars
• Nightclubs
• Bars and restaurants
• Museums and AV spaces
• Convention centres
• Hotels
• Retail outlets
• Leisure centres
• Houses of Worship

Technical Specification :
