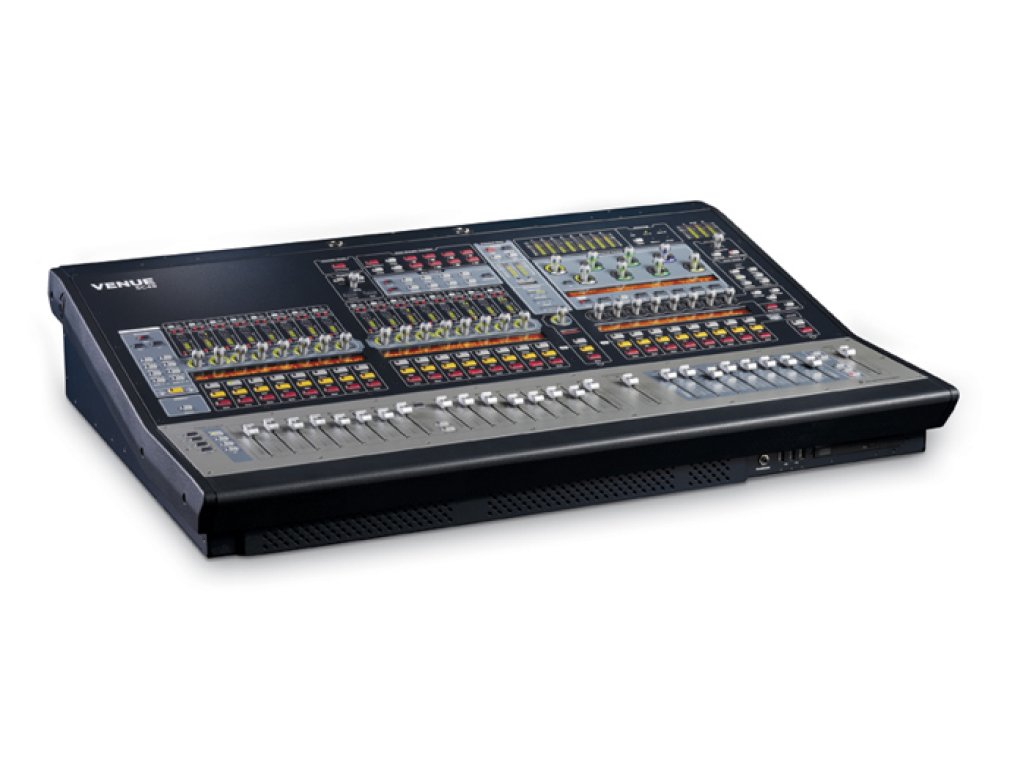

VENUE SC48

AVID VENUE SC48, Digital live mix konzola AVID 48IN/16OUT,nepoužívaný
Cena
9 600,04 € 24 648,70 €
-61 %
8 000,03 € bez DPH
Dostupnosť:
Skladom  1 ks
Značka:
Hmotnosť:
28 kg
Bežná cena:
24 648,70 €

VENUE | SC48 Overview


Get the amazing sound quality and rock-solid reliability of Avid live sound systems all in one compact console. SC48 is a fully integrated system that combines all I/O, digital signal processing, and tactile control into a single console, making it one of the most affordable and portable Avid live systems. The console not only features studio-quality plug-in support, a built-in Pro Tools recording interface, and easy portability, it offers several innovative workflows that streamline the mixing process, enabling you to concentrate on mixing the show instead of operating the board.

View all SC48 videos

Key Features

  • Fully integrated console offers built-in I/O for stage and ancillary sources, DSP, and tactile control for ultimate portability
  • Compact footprint fits small- to mid-size clubs, houses of worship, theaters, corporate events, and more
  • First-rate sound quality provides amazing audio clarity in any room
  • Supports professional audio plug-ins for creating studio-quality mixes live
  • Record and play back up to 32 tracks with the built-in Pro Tools FireWire interface and included software
  • VENUE software, the industry’s easiest, most comprehensive control software
  • 48 analog mic/line XLR inputs, 16 analog line outputs (expandable to 32)
  • Single expansion slot for maximizing output count or adding A-Net connectivity
  • 16 Aux Sends, 8 Groups, plus 8 mono matrixes (linkable as up to 4 stereo matrixes)
  • Choice of Left-Right plus Mono or Left-Center-Right Mains bus configuration
  • 26 touch-sensitive, motorized faders: 16 input, 8 output master, 1 Flex Channel, and 1 Mains
  • 16 assignable, push-switch rotary encoders with multi-segment LED rings enable immediate access to key parameters
  • Additional I/O, including talkback, analog and digital 2-track, GPI, MIDI, and Word Clock

VENUE | SC48 What's Included


* Video monitor, USB keyboard, USB trackball/mouse, and console lights sold separately.

VENUE | SC48 Features

Truly Portable All-in-One System

Setting a new standard for sound quality, size efficiency, and price, SC48 packs all I/O, digital signal processing, and mixing control into a single compact console. The fully integrated system enables you to travel light and bring the unprecedented sound quality and creativity of Avid live sound systems to any event, or easily replace an analog console by simply dropping SC48 right into the existing cabling system. With its versatility and small footprint, you can connect stage mics and other inputs and outputs directly to the console, integrate Pro Tools recording and playback for Virtual Soundcheck and show archiving, control all software functions remotely over a wired or wireless Ethernet device, and mix front-of-house and monitors using studio-quality processing.


Amazing Sound Quality

Don’t let its small size fool you. SC48 is a powerful performer, letting you create and deliver everything from simple to complex mixes in stunning sound quality. Its studio-grade mic preamps preserve audio fidelity and imaging for complete transparency, while built-in processing, including high-quality graphic EQ and dynamics, optimize clarity. And with support for professional plug-ins built right into the console, you can easily re-create and instantly recall an artist’s signature studio sound live on stage—no other console at this price point provides you with the sheer number and breadth of sound processing choices available at your fingertips.


Seamless Pro Tools Integration

SC48 features a built-in Pro Tools FireWire interface, making it easy to connect a computer (sold separately) running Pro Tools software (included with SC48) to record and archive live performances or for audio playback. With SC48 and Pro Tools, you can also perform Virtual Soundcheck—a timesaving process that lets you play tracks recorded from a previous live performance, and fine-tune your mix settings before an actual show or rehearsal without requiring the band or performers to be there.


Powerful Workflow Innovations

SC48 introduces several new features—some of which you’ll only find from Avid—to optimize your workflow. Using the exclusive Channel Control, a single button press gives you immediate access and control over any channel strip function, including input parameters, EQ and dynamics, and Aux sends, using the console’s eight color-coded rotary encoders. Use the unique Flex Channel in latch mode to assign and gain perpetual access to a key channel, and never lose sight of the star of the show. Take advantage of VCA Spill, which gives you unprecedented access to specific channels within your mix without banking. And maximize your efficiency using the console’s General Purpose Interface (GPI) I/O and VENUE software to create custom macros, enabling you to perform multiple functions by simply pressing a button, stomping a footswitch, or moving a fader.


One Software Platform

All Avid live sound systems operate under one common software platform—VENUE software, the industry’s easiest, most comprehensive control software. VENUE software sets new standards in operational efficiency and workflow, giving you instant access to and full control over any function of the system. Just a simple button push on the console or click from the screen gives you access to inputs, outputs, filing operations, snapshots, the digital patchbay, plug-ins, and user options. And because all Avid live sound systems share this same software platform, you only need to learn it once to mix on any VENUE-based system, big or small, and can create and load show files for use on any Avid live system.

VENUE | SC48 Specifications

VENUE | SC48 Hardware Specifications
Maximum Height (front)
Maximum Height (rear)
3.9 inches (100 mm)
7.3 inches (186 mm)
Maximum Width 38.95 inches (989 mm) with endcaps
Maximum Depth 28.15 inches (715 mm)
Weight 125 lbs (56.7 Kg)
Power Requirements 100-240 V, 50-60 Hz, 200 W
USB Ports (5) USB 2.0
IEEE-1394 Port FireWire (for Pro Tools only)
GPI Port DB9 female
Footswitch Connectors (2) 1/4-inch TRS
MIDI In/Out 5-pin DIN female
Word Clock In/Out BNC female
VGA Port DB-15 mini-female (1024 x 768 resolution, mirrored display mode)
DVI Port DVI female (1024 x 768 resolution, mirrored display mode)
ECx Ethernet Control RJ-45 (for ECx remote control)
Console Light Connectors (2) XLR3-F


VENUE | SC48 General Audio Specifications
Internal Sample Frequency 48 kHz
External Sample Frequency 48 kHz +/-10 ppm (Word Clock input)
Processing Delay Less than 2.3 ms (48 channels, stage input through L-R bus to stage output)
Internal Processing Up to 48-bit, fixed point (288 dB internal dynamic range)
Frequency Response +/-0.2 dB (22 Hz - 20 kHz BW, relative to 1 kHz)
Dynamic Range 108 dB typ
Crosstalk -100 dB typ (adjacent stage inputs to L-R bus, @ 1kHz)
Residual Output Noise -90 dBu typ (20 Hz - 20 kHz BW)


AO16 Analog Output Card (1)
VENUE | SC48 Stage I/O (standard configuration)
AI16 Analog Input Cards (3)
Connector (x16) XLR3-F, balanced
Phantom Power +48V (individually switchable per channel via software), 10 mA max
Maximum Input Level +32 dBu with pad*
Pad 20 dB
Gain +10 dB to +60 dB
Input Impedance pad off: 5.5k Ohm, leg to ground
pad on: 3.8k Ohm, leg to ground
EIN -126 dBu typ (maximum gain, 150 Ohm source, 20 Hz - 20 kHz BW, unweighted)*
A/D Converter 24-bit, delta sigma
Connector (x16) XLR3-M, balanced
Maximum Output Level +24 dBu*
Output Impedance 50 Ohm, leg to ground
D/A Converter 24-bit, delta sigma, 128x oversampling

* 0 dBu = 0.775V rms

SC48 FOH I/O
Talkback Mic Input
Connector XLR3-F
Phantom Power +15V @ 6mA (switchable)
Sensitivity -2 dBu to -32 dBu (variable in 6 gain steps)
Input Impedance 4k Ohms
2-Track Analog Inputs
Connector 1/4-inch TRS
Maximum Input Level +24 dBu
Input Impedance 10k Ohms
2-Track Analog Outputs
Connector 1/4-inch TRS
Maximum Output Level +24 dBu
Output Impedance 50 Ohms
2-Track Digital AES Inputs
Connector XLR3-F
Format AES/EBU
Word Length 24-bit
Sample Rate 48 kHz
Sample Rate Conversion 3:1 ratio
2-Track Digital AES Outputs
Connector XLR3-M
Format AES/EBU
Word Length 24-bit
Sample Rate 48 kHz
Dithering None
Channel Status Info Pro, Audio 48K, No Emphasis
Headphone Output
Connector (1) 1/4-inch TRS, unbalanced
Output Impedance 50 Ohms
Maximum RMS Power Output (at +21 dBu) 106 mW (with 32-Ohm headphones) 130 mW (with 600-Ohm headphones)
